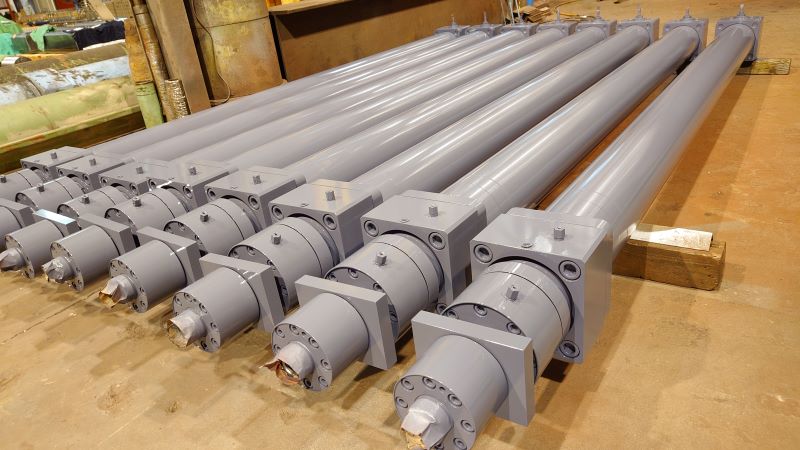

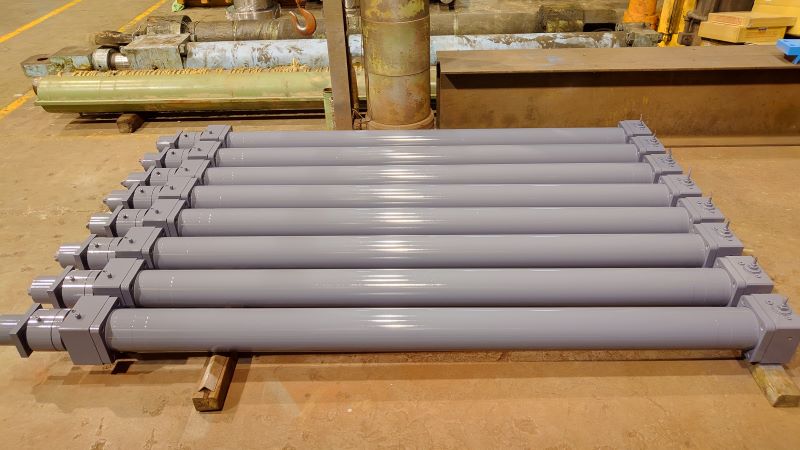

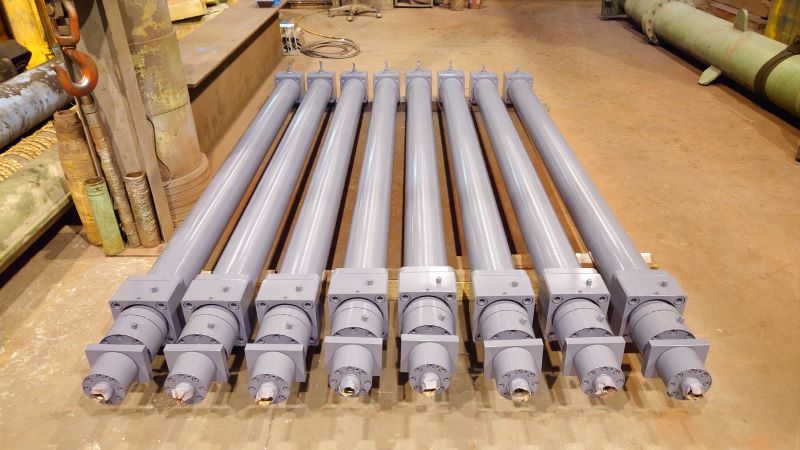

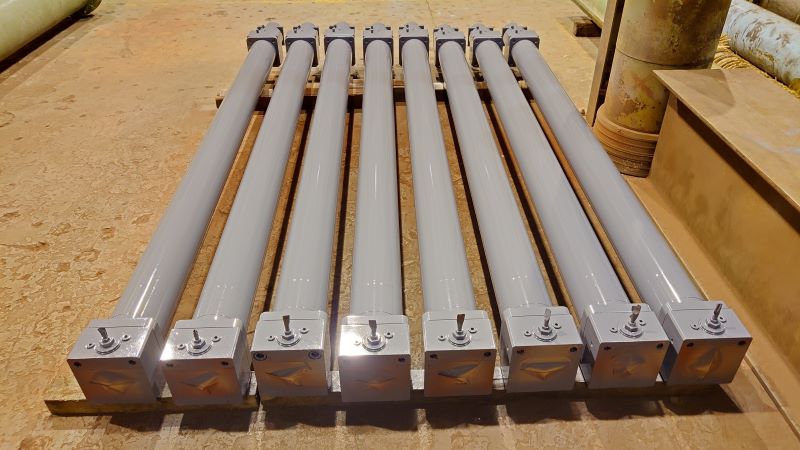

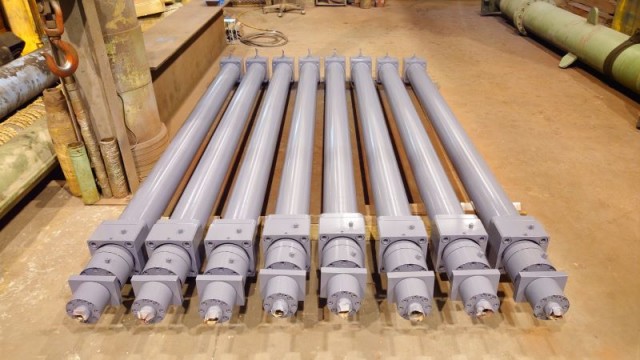

Synchronized multi-stage hydraulic cylinder

• Specification: SD130-50-5750 (SD130/100+85/70+58/50x5750)
• Pressure Capabilities:  75 bar

This synchronized multi-stage hydraulic cylinder is applied to furnace repair car platforms, enabling smooth synchronous ascent to lift maintenance personnel to elevated positions for repair operations. The length when the hydraulic cylinder is fully retracted is 2770 mm, and when fully extended, the length is 8520 mm.

Synchronized multi-stage hydraulic cylinders allow each stage to extend simultaneously during the extension process. They can reach lengths of up to 9 meters. Our company offers customization options for two-stage to three-stage synchronized hydraulic cylinders, making them suitable for applications such as elevator platforms, maintenance platforms, and stage platforms that require vertical lifting capabilities.

< Click to watch the test video of the synchronized multi-stage hydraulic cylinder in 3 sections >
